49. PORT SECURITY

Introduction to Port Security

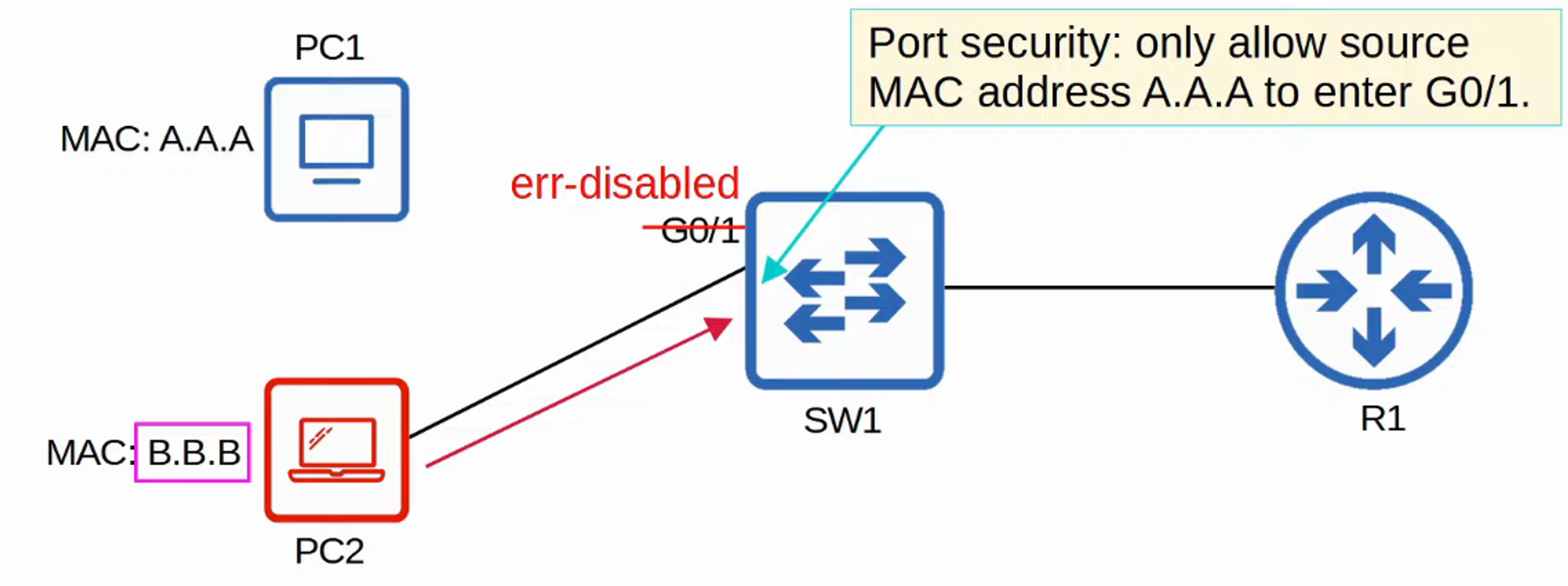

• Port Security is a feature available on Cisco switches that helps control which devices can access a network by limiting the MAC addresses allowed on a switchport.
• It ensures that only authorized devices (based on MAC addresses) can send traffic through the switchport.
• If an unauthorized MAC address attempts to access the network, an action will be triggered. The default action is to place the interface in an “err-disabled” state, effectively shutting it down.

• By default, Port Security allows only one MAC address on an interface.
  • You can either manually specify this allowed MAC address or let the switch dynamically learn the first MAC address to access the interface.

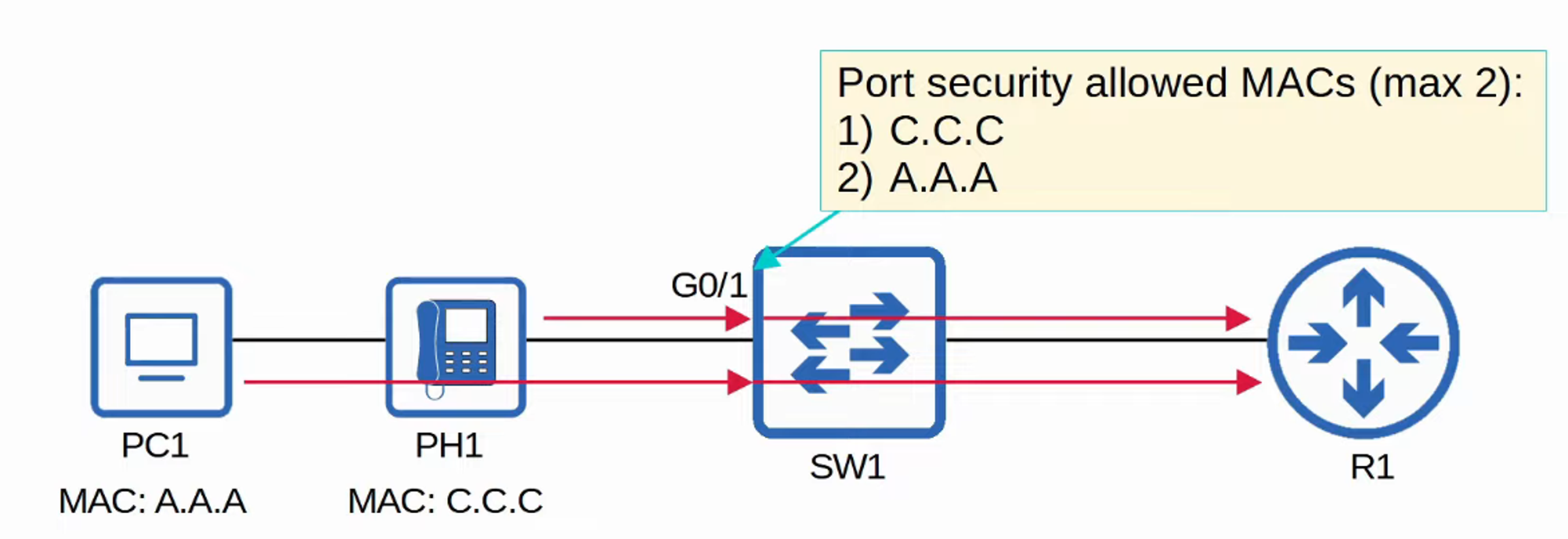

  • It’s also possible to adjust the maximum number of allowed MAC addresses.
  • A combination of manually specified and dynamically learned MAC addresses can be used.

---

Why Use Port Security?

• Port Security provides network administrators control over which devices are allowed to connect to the network.
• However, MAC address spoofing is relatively easy, meaning attackers can configure devices to use a different MAC address to bypass restrictions.
• Port Security is more useful for limiting the number of devices connected to a port rather than specifying exact MAC addresses.
  • For example, in a DHCP starvation attack (as covered in the Day 48 lab), an attacker could flood a switch with fake MAC addresses, filling up the DHCP server’s IP pool and the switch’s MAC address table.
  • Limiting the number of allowed MAC addresses on an interface protects against such attacks.

---

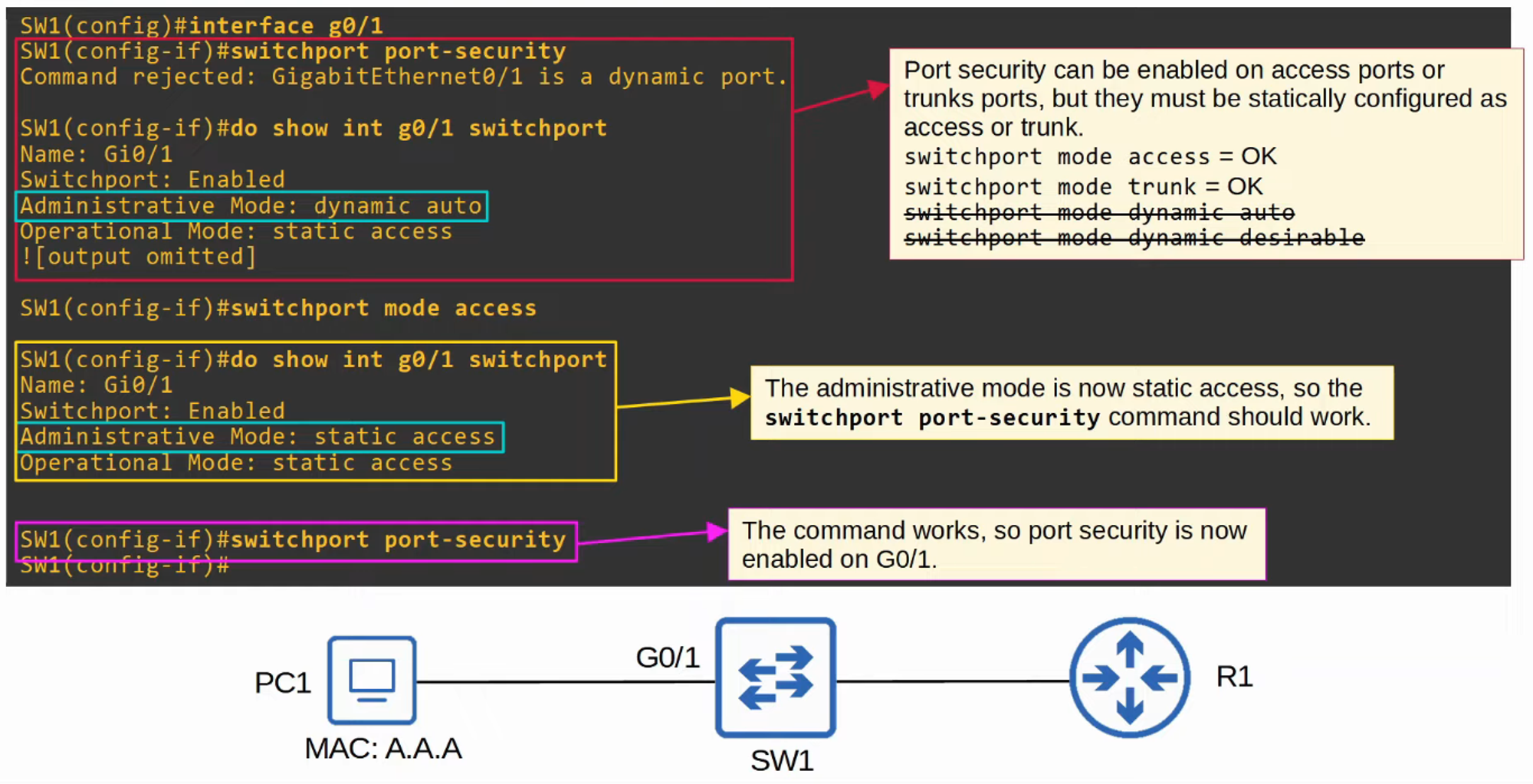

Enabling Port Security

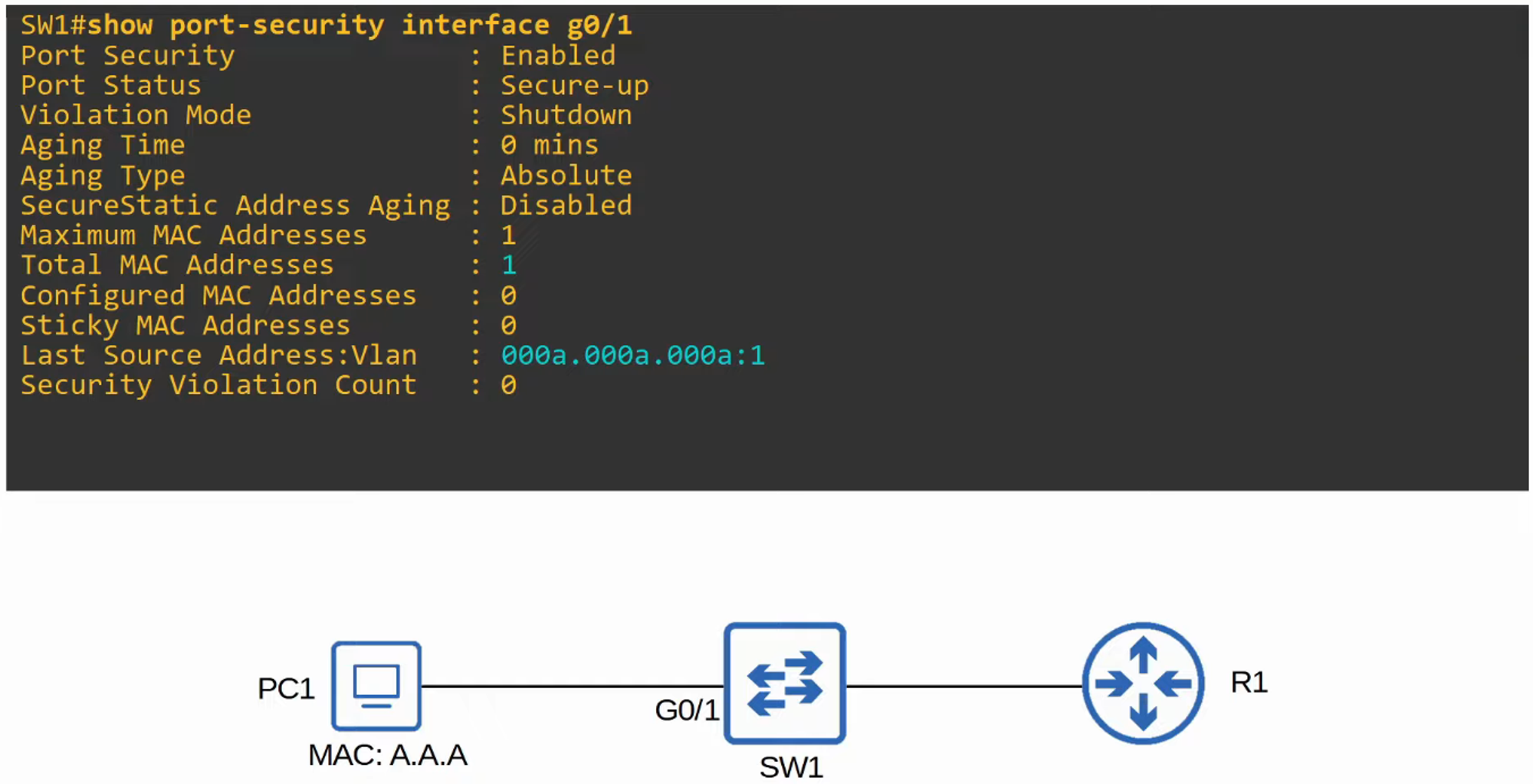

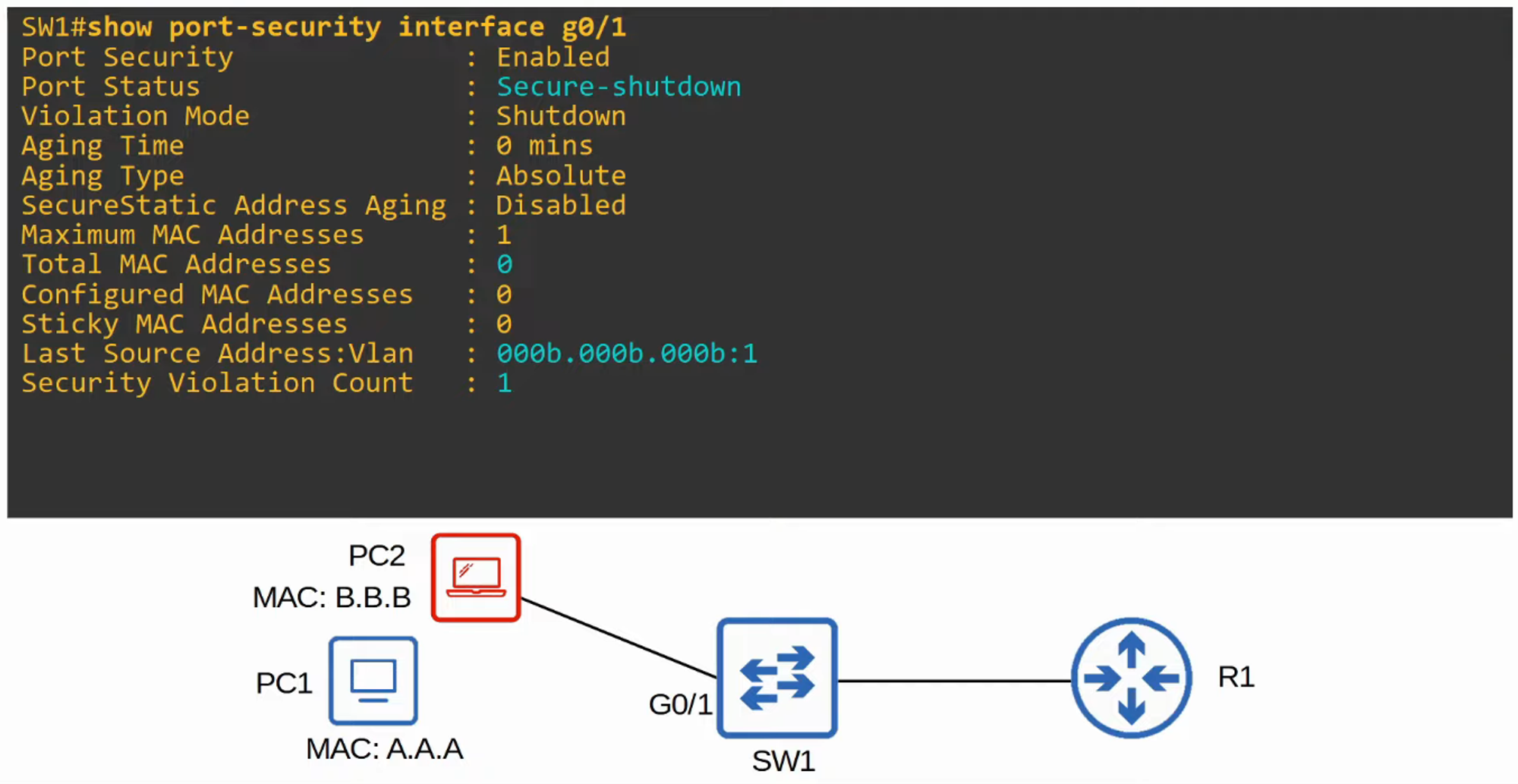

You can check the status of Port Security on an interface with:

show port-security interface

---

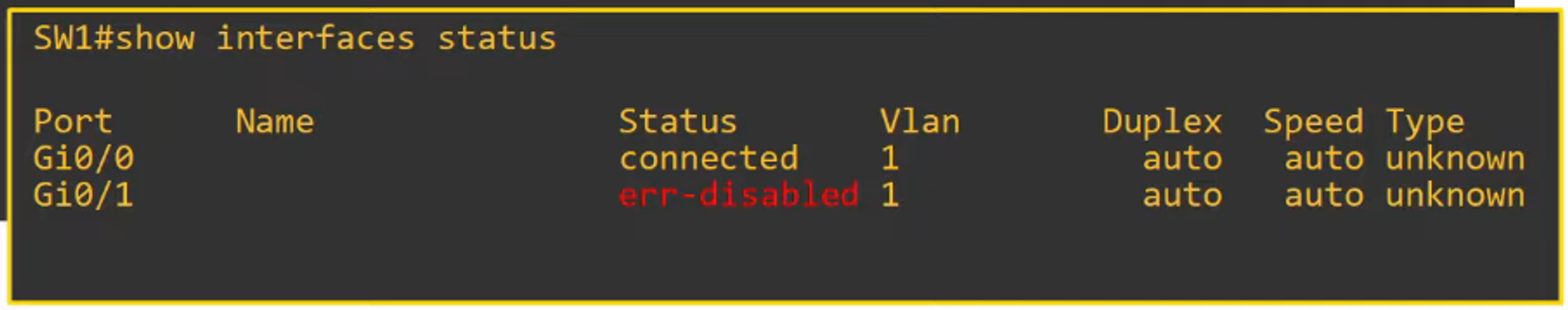

Re-enabling a Disabled Interface

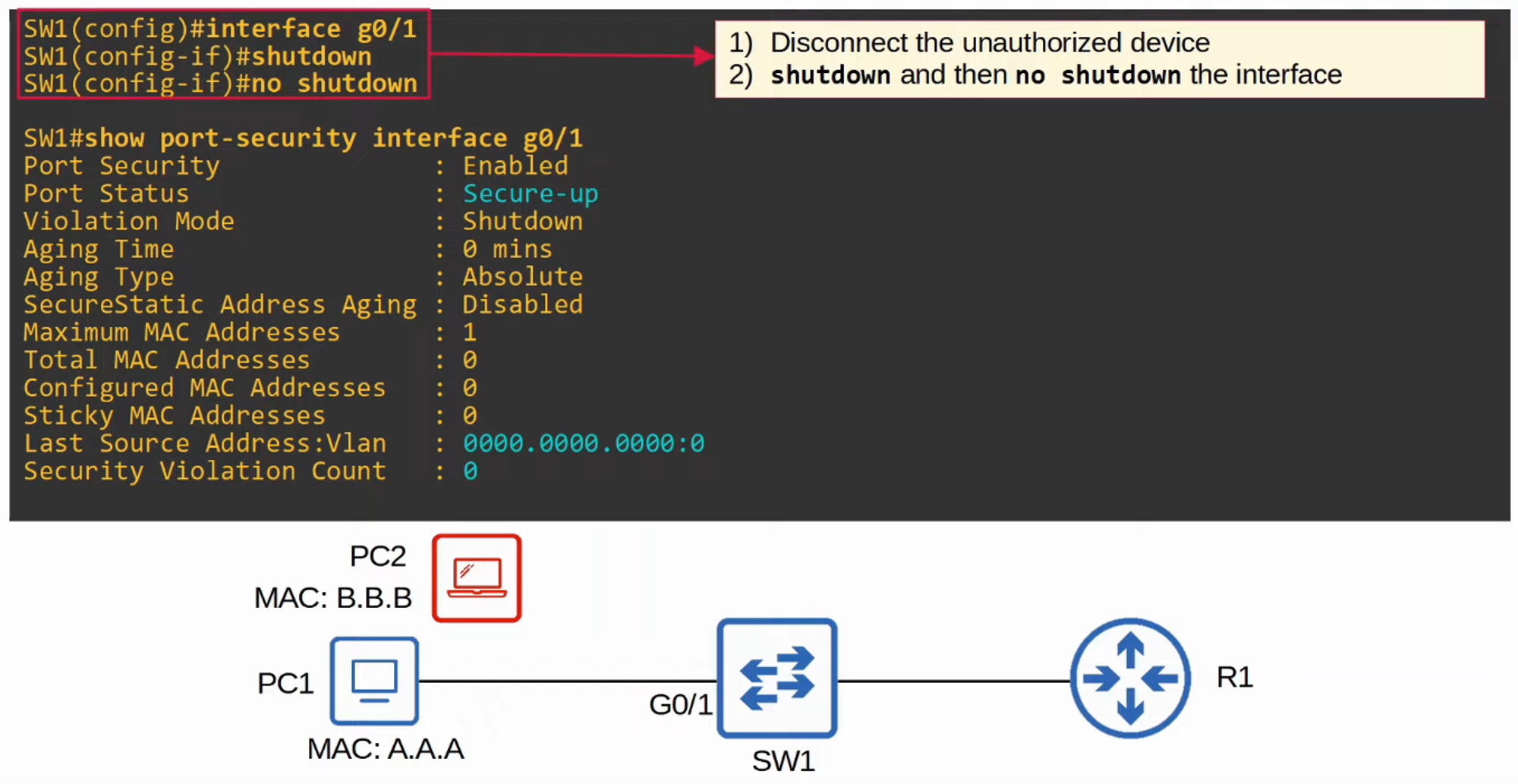

1. Manual Re-enabling
   If an interface is disabled due to a security violation, you can manually re-enable it.

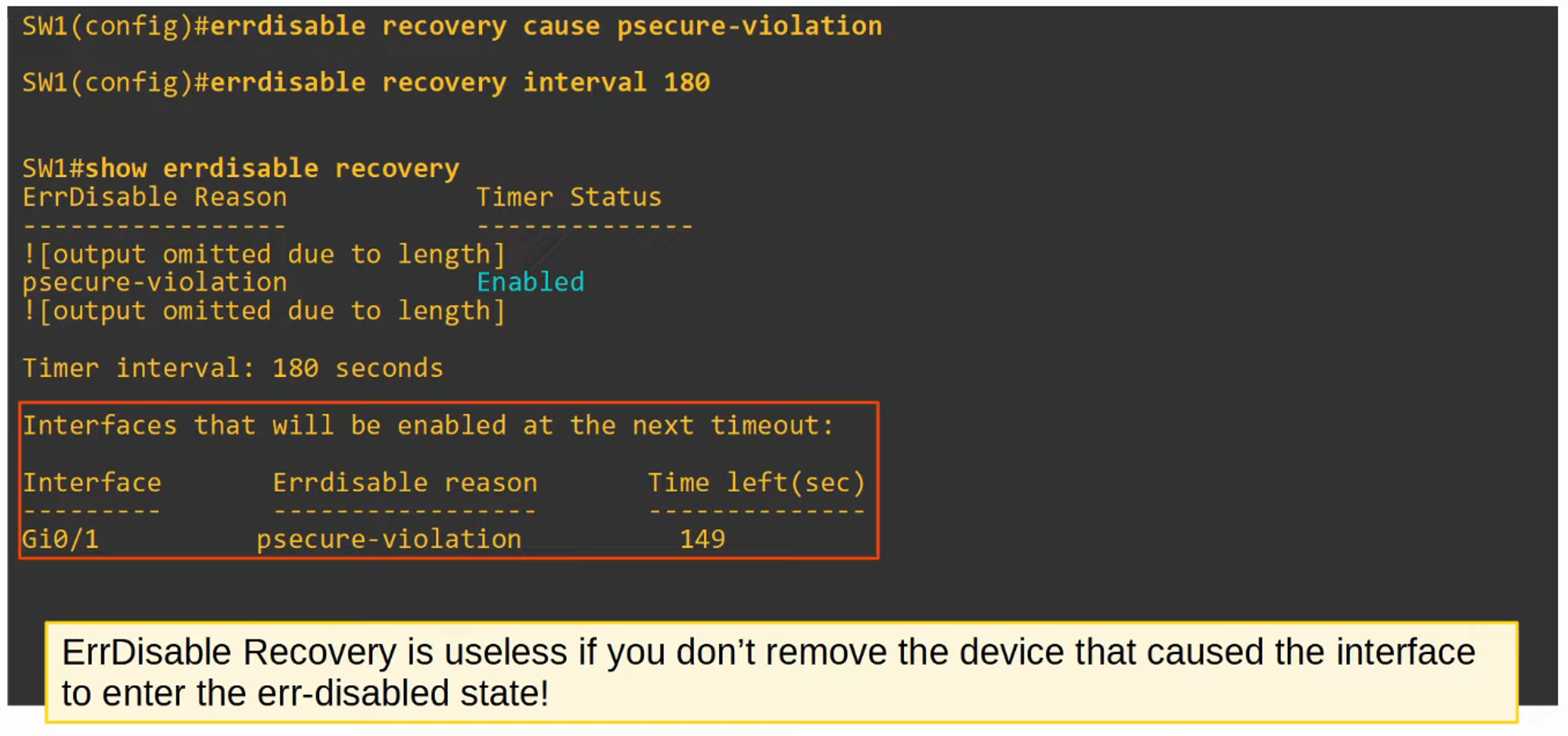

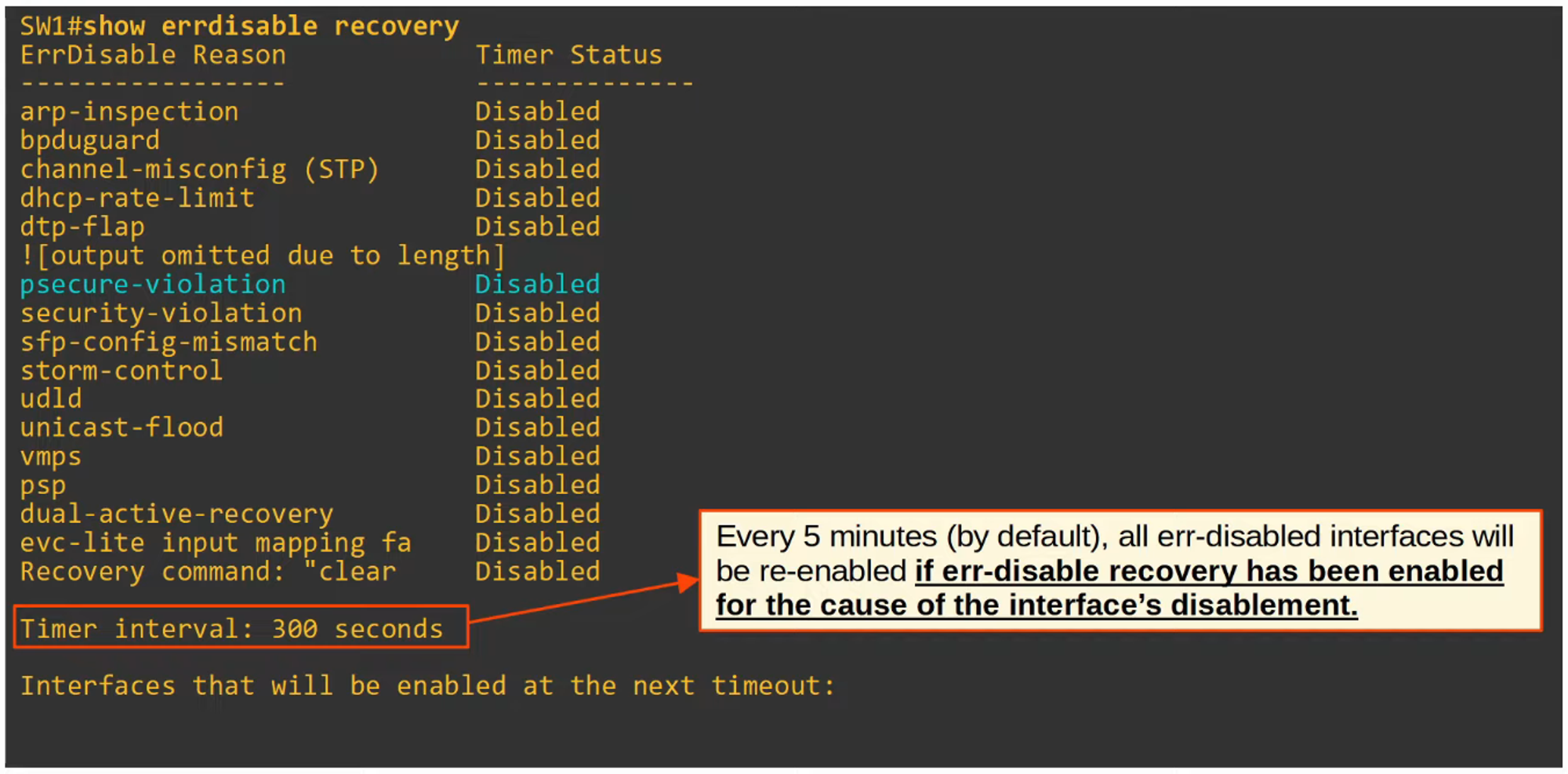

2. Err-disable Recovery
   Alternatively, you can configure the switch to automatically recover from an “err-disabled” state after a certain time period.

---

Violation Modes

Port Security offers three different violation modes that dictate what the switch does when an unauthorized MAC address attempts to access a port:

1. Shutdown (Default Mode)

   • The port is placed into an “err-disabled” state, effectively shutting it down.
   • A syslog or SNMP message is generated.
   • The violation counter is set to 1 when the port is disabled.

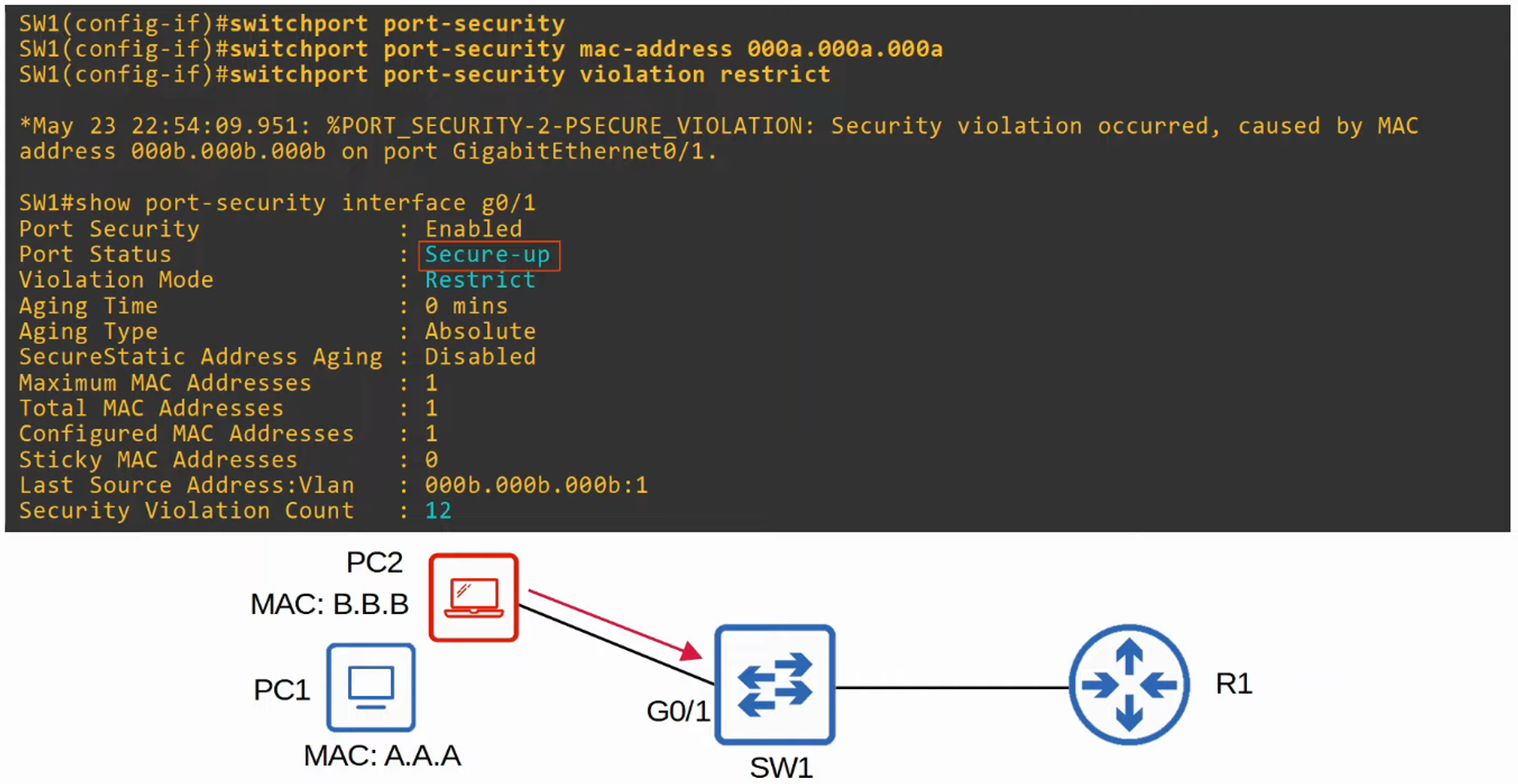

2. Restrict

   • Unauthorized MAC addresses are blocked, but the port remains active.
   • Syslog or SNMP messages are generated for each unauthorized MAC address detected.
   • The violation counter increments for every unauthorized frame.

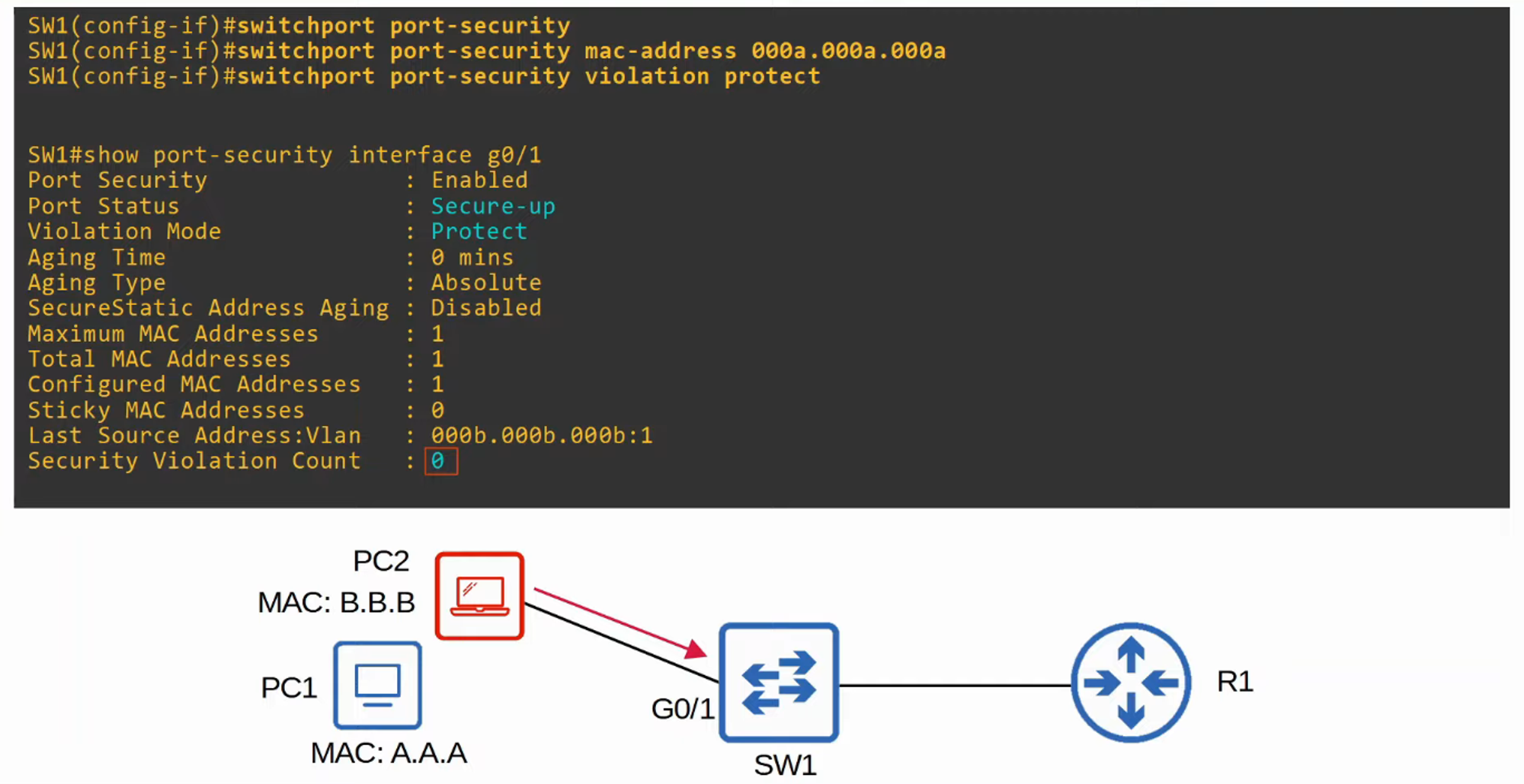

3. Protect

   • Unauthorized MAC addresses are blocked, but no logs or messages are generated, and the violation counter is not incremented.

---

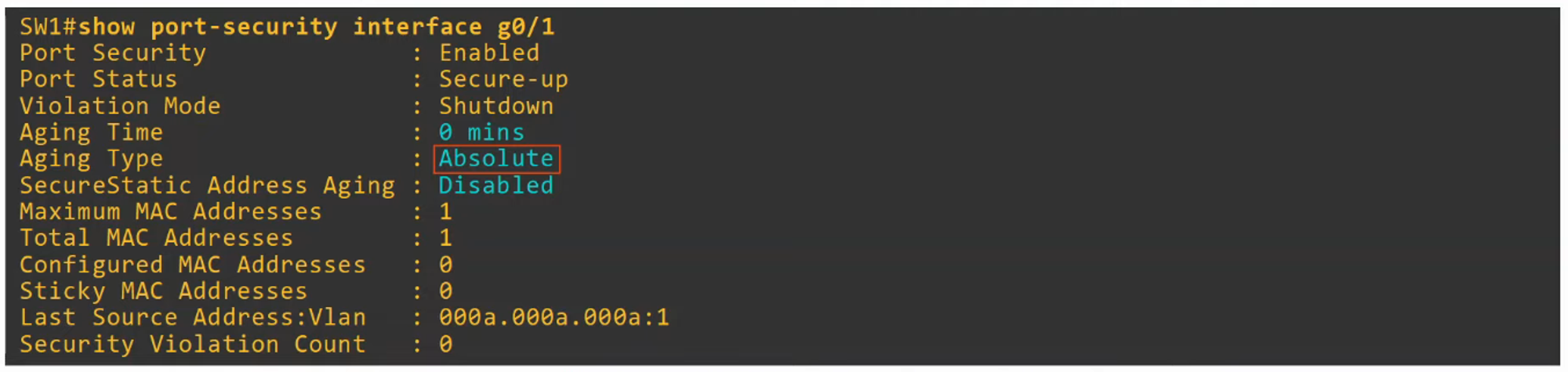

Secure MAC Address Aging

• By default, secure MAC addresses do not age out (Aging Time = 0 mins). You can configure the aging time with:
  switchport port-security aging time <minutes>

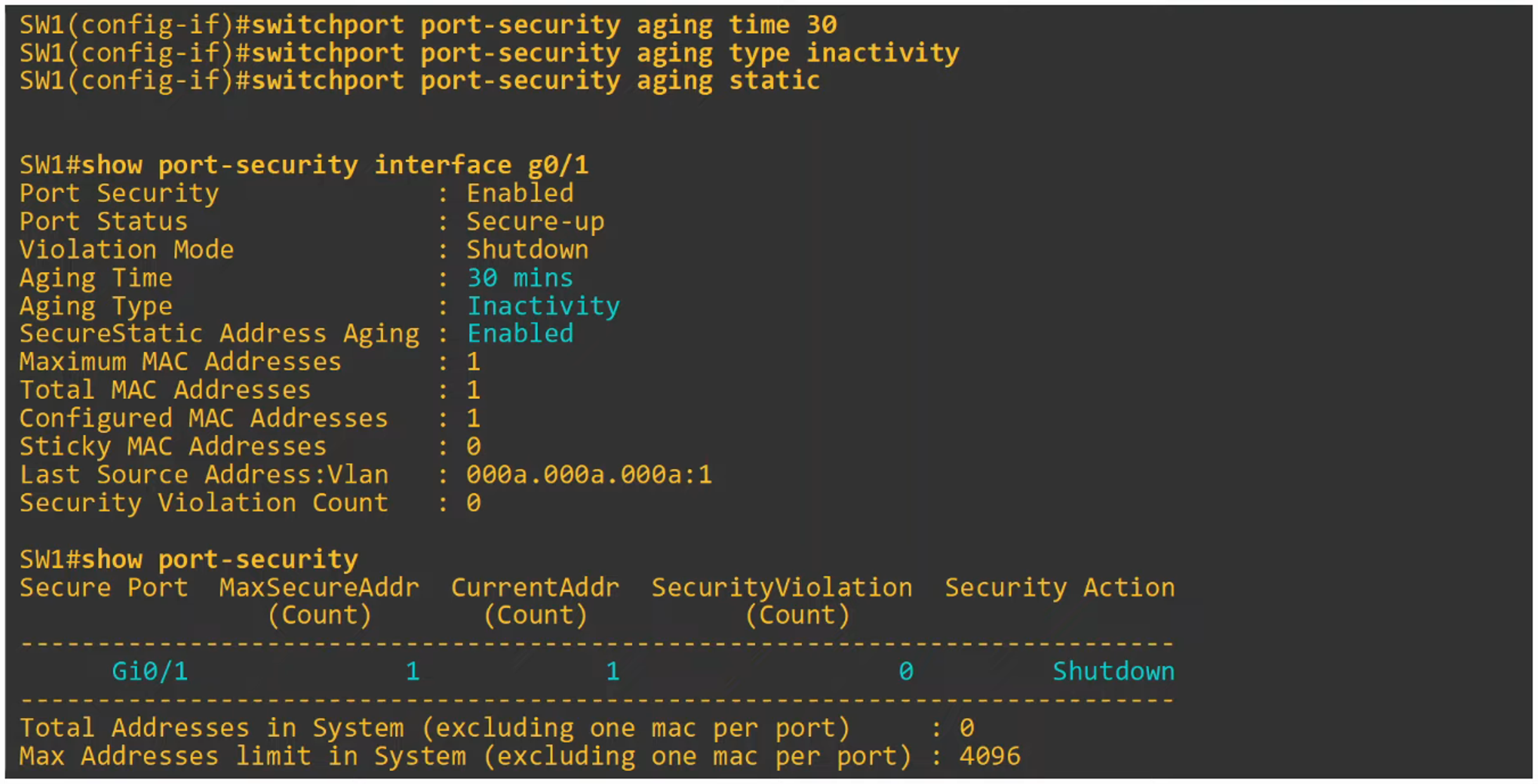

• Aging Types:

  • Absolute (Default):
    • The aging timer starts when the secure MAC address is learned, and the MAC address is removed once the timer expires, even if traffic from that MAC continues.
  • Inactivity:
    • The aging timer resets each time a frame from the secure MAC address is received. The MAC address is removed only if no frames are received within the timer period.
  • Configure the aging type with:
    switchport port-security aging type {absolute | inactivity}

• Secure static MAC addresses (manually configured) do not age out by default.

---

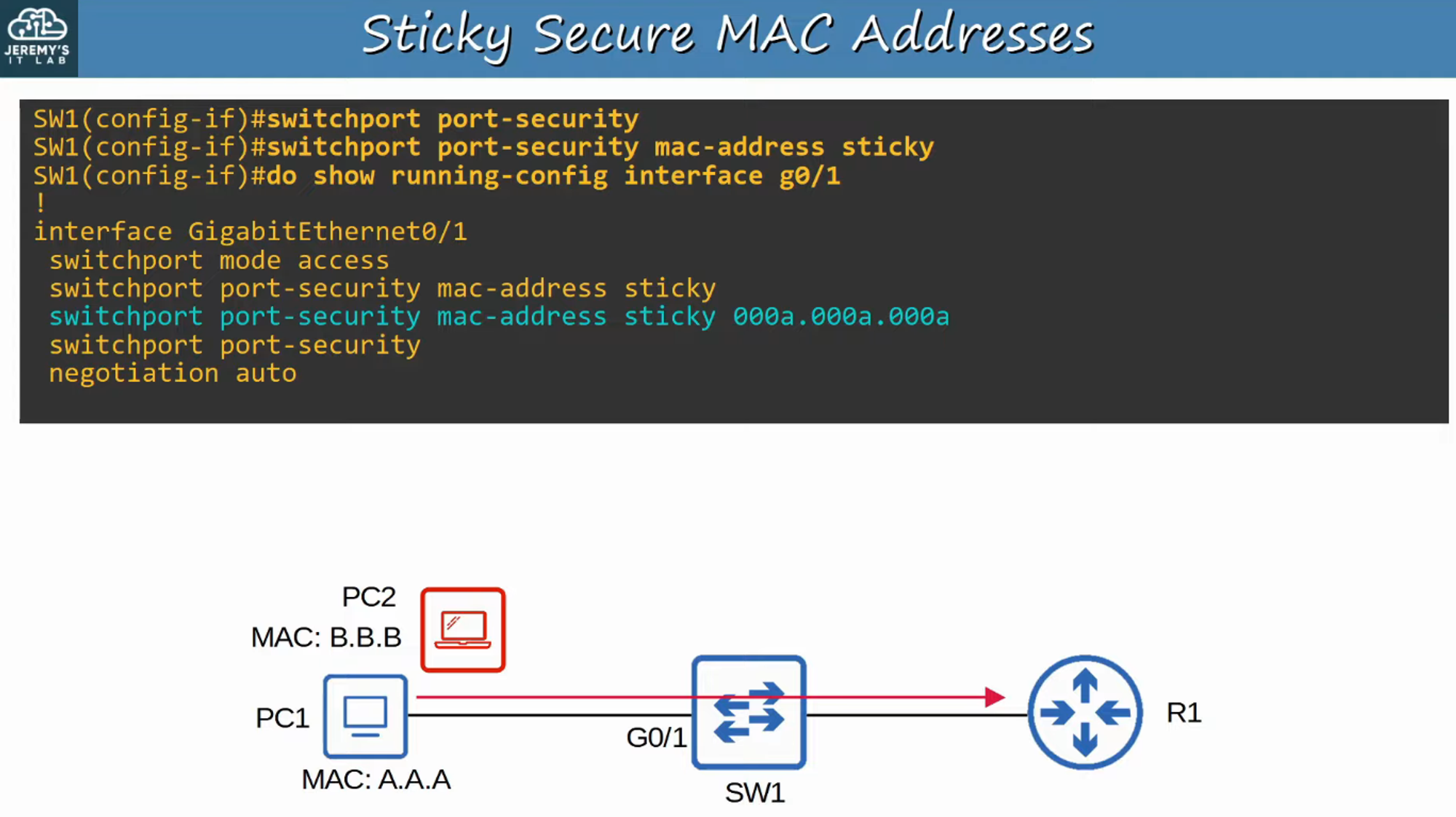

Sticky Secure MAC Addresses

• Enabling sticky MAC address learning allows dynamically learned MAC addresses to be added to the running configuration as secure MAC addresses. This is done with:
  SW(config-if)# switchport port-security mac-address sticky
• Sticky MAC addresses do not age out, and to make them permanent, the running configuration must be saved to the startup configuration.
• When the command is issued, all currently learned secure MAC addresses will become sticky.
• To reverse this and convert sticky addresses back to dynamically learned addresses:
  no switchport port-security mac-address sticky

---

MAC Address Table

• Secure MAC addresses are stored in the MAC address table like any other MAC address.
  • Sticky and manually configured secure MAC addresses are listed as static.
  • Dynamically learned secure MAC addresses are listed as dynamic.

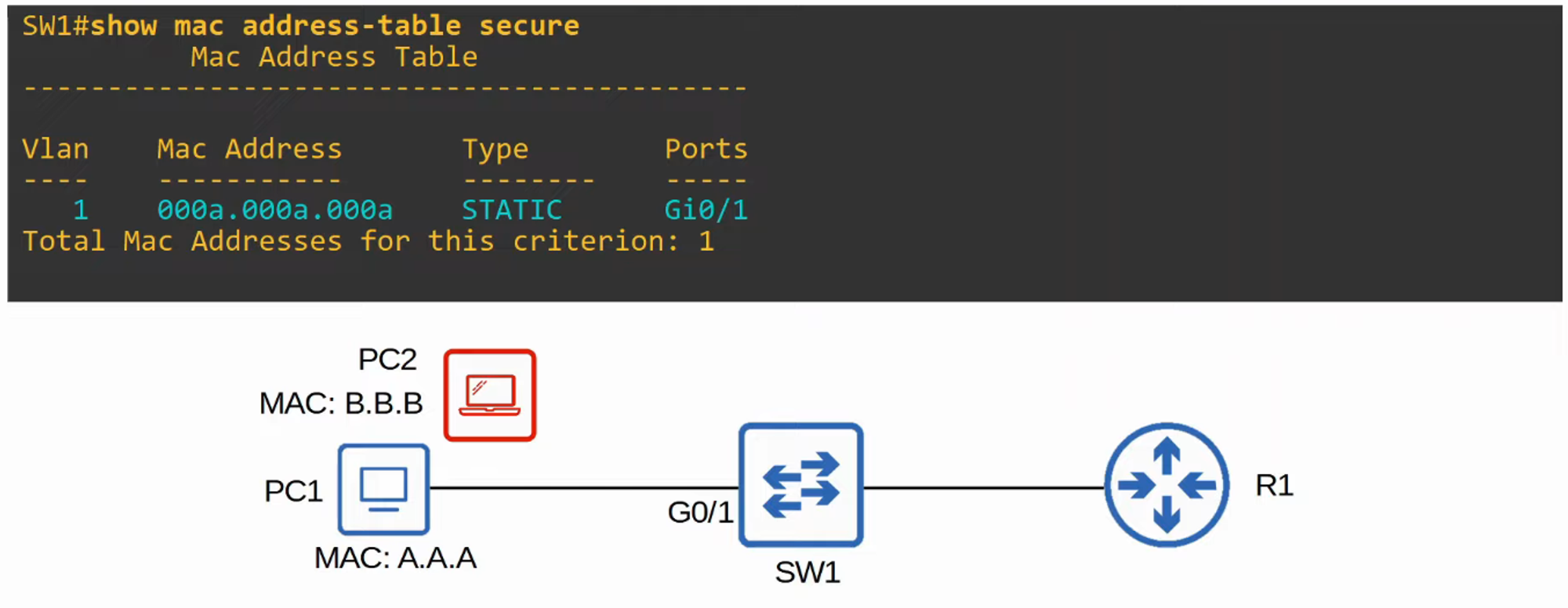

  • You can view all secure MAC addresses with:
    show mac address-table secure

---

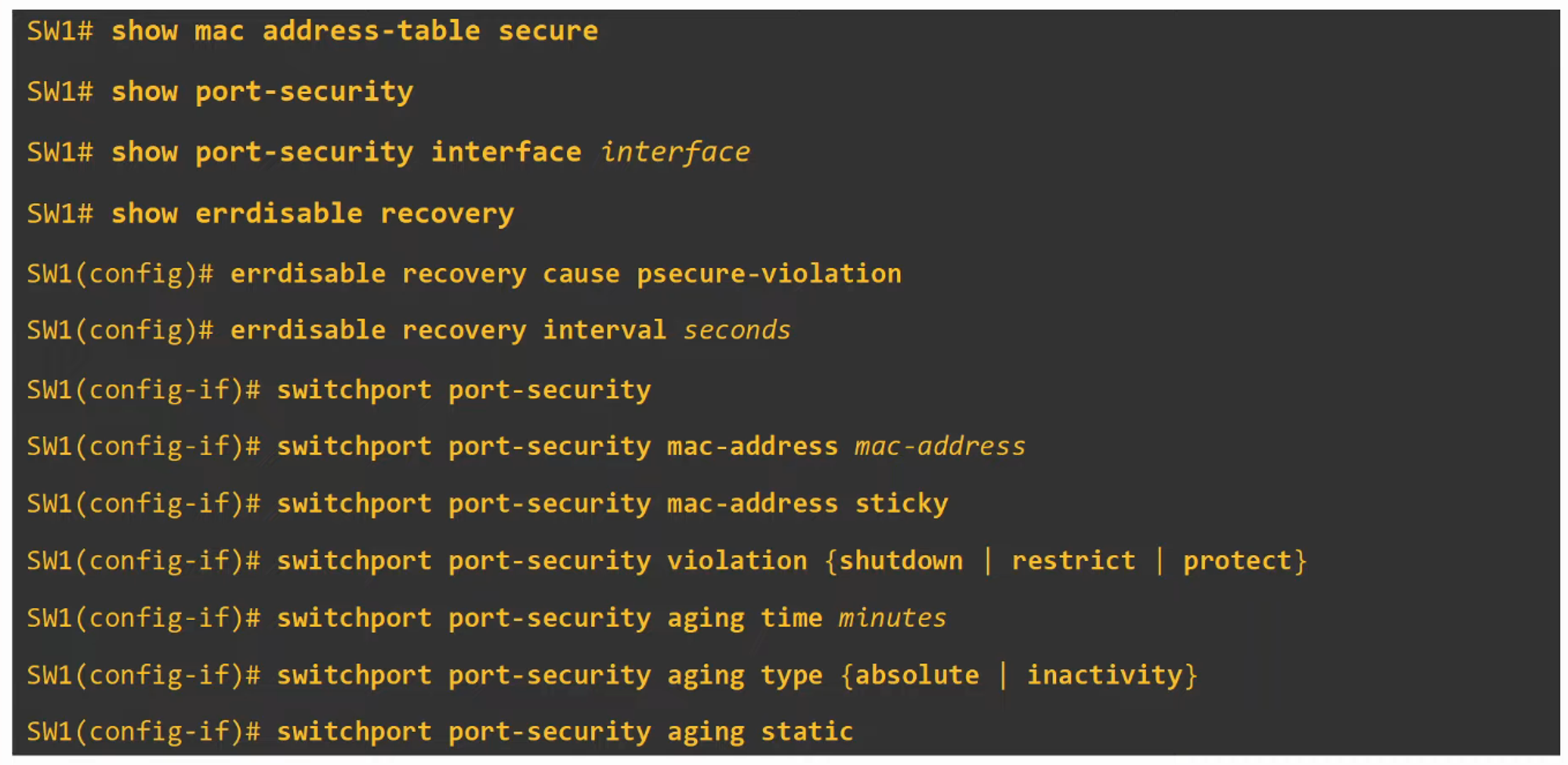

Command Review

---
