Overview

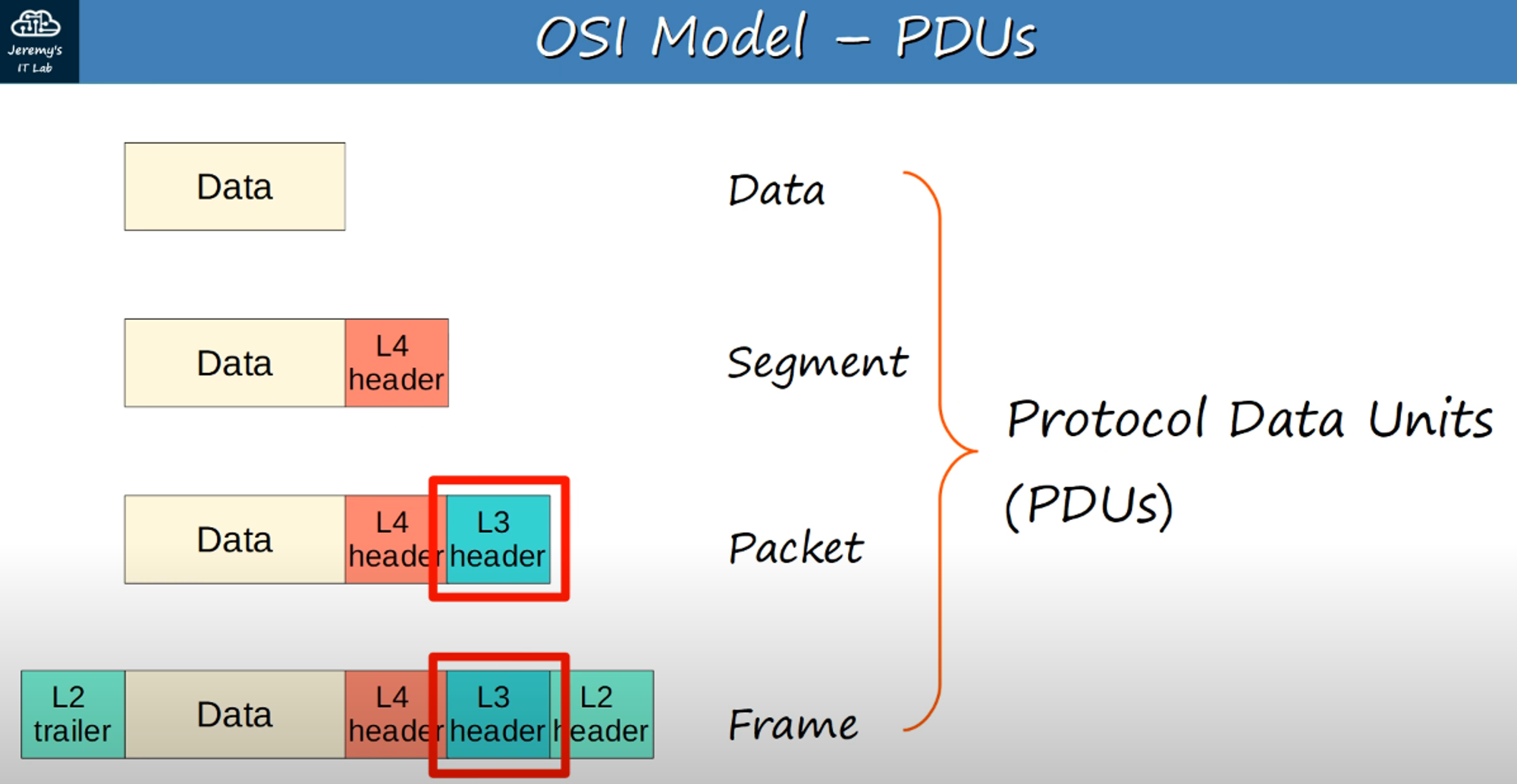

The Internet Protocol Version 4 (IPv4) Header is a crucial part of Layer 3 in the OSI model, used to route data across different networks, including vast distances over the internet. This header encapsulates a TCP or UDP segment, aiding in the process known as routing.

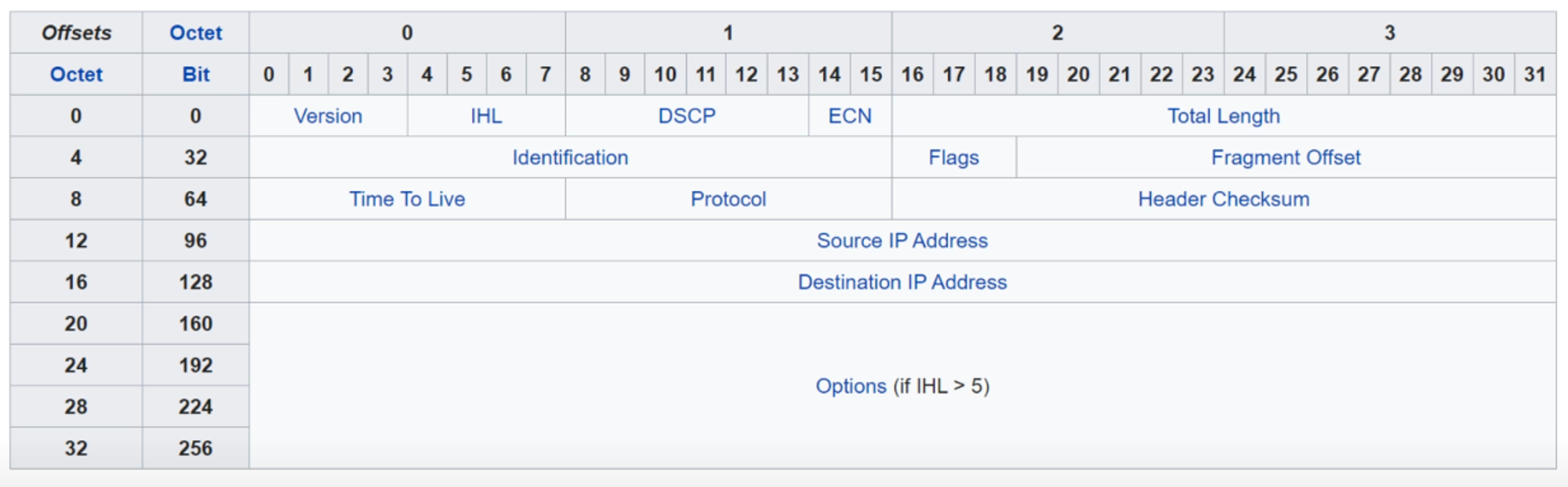

Fields of the IPv4 Header
The IPv4 header contains several fields, each with a specific role in ensuring the proper delivery and processing of packets.
| Field | # of Bits |
|---|---|
| VERSION | 4 |
| IHL | 4 |
| DSCP | 6 |
| ECN | 2 |
| TOTAL LENGTH | 16 |
| IDENTIFICATION | 16 |
| FLAGS | 3 |
| FRAGMENT OFFSET | 13 |
| TIME TO LIVE (TTL) | 8 |
| PROTOCOL | 8 |
| HEADER CHECKSUM | 16 |
| SOURCE ADDRESS | 32 |
| DESTINATION ADDRESS | 32 |
| OPTIONS | 0-320 (Optional) |
Version
- Length: 4 bits
- Purpose: Identifies the version of IP used (IPv4 or IPv6).
- IPv4:
0100in binary (decimal 4) - IPv6:
0110in binary (decimal 6)
- IPv4:
Internet Header Length (IHL)
- Length: 4 bits
- Purpose: Indicates the total length of the IPv4 header in 4-byte increments.
- Minimum Value: 5 (5 * 4 bytes = 20 bytes)
- Maximum Value: 15 (15 * 4 bytes = 60 bytes)
Note: The IPv4 header length can vary between 20 and 60 bytes, depending on the presence of optional fields.
DSCP (Differentiated Services Code Point)
- Length: 6 bits
- Purpose: Used for Quality of Service (QoS) to prioritize delay-sensitive data, such as streaming voice or video.
ECN (Explicit Congestion Notification)
- Length: 2 bits
- Purpose: Provides end-to-end notification of network congestion without dropping packets.
- Note: Requires support from both endpoints and the network infrastructure.
Total Length
- Length: 16 bits
- Purpose: Indicates the total length of the packet, including the IPv4 header and the encapsulated Layer 4 segment.
- Range:
- Minimum: 20 bytes (header only)
- Maximum: 65,535 bytes (2^16 - 1)
Identification
- Length: 16 bits
- Purpose: Used to identify fragments of a packet. All fragments of the same packet have the same identification number.
- Note: Packets are fragmented if they exceed the Maximum Transmission Unit (MTU), typically 1500 bytes for Ethernet frames.
Flags
- Length: 3 bits
- Purpose: Controls and identifies packet fragments.
- Bit 0: Reserved (always 0)
- Bit 1 (DF - Don’t Fragment): Indicates if a packet should not be fragmented.
- Bit 2 (MF - More Fragments): Set to 1 if more fragments follow; 0 for the last fragment or if no fragmentation occurs.
Fragment Offset
- Length: 13 bits
- Purpose: Indicates the position of the fragment in the original packet. This helps in reassembling the fragments even if they arrive out of order.
Time to Live (TTL)
- Length: 8 bits
- Purpose: Prevents packets from looping indefinitely. Each router that forwards the packet decreases the TTL by 1. If TTL reaches 0, the packet is discarded.
- Recommended Default: 64
Protocol
- Length: 8 bits
- Purpose: Identifies the encapsulated Layer 4 protocol.
- Examples:
1: ICMP6: TCP17: UDP89: OSPF (Dynamic Routing Protocol)
- Examples:
- Note: A complete list of protocol numbers can be found on Wikipedia: List of IP Protocol Numbers.
Header Checksum
- Length: 16 bits
- Purpose: Ensures the integrity of the IPv4 header by allowing routers to verify its correctness. If the calculated checksum does not match, the packet is dropped.
- Note: This checksum only verifies the header, not the encapsulated data. Error detection for the data is handled by the encapsulated protocols, such as TCP or UDP.
Source and Destination Addresses
- Length: 32 bits each
- Purpose:
- Source IP: The IPv4 address of the sender.
- Destination IP: The IPv4 address of the intended recipient.
Options
- Length: 0-320 bits (variable)
- Purpose: Optional and rarely used. If the IHL field is greater than 5, options are present.
